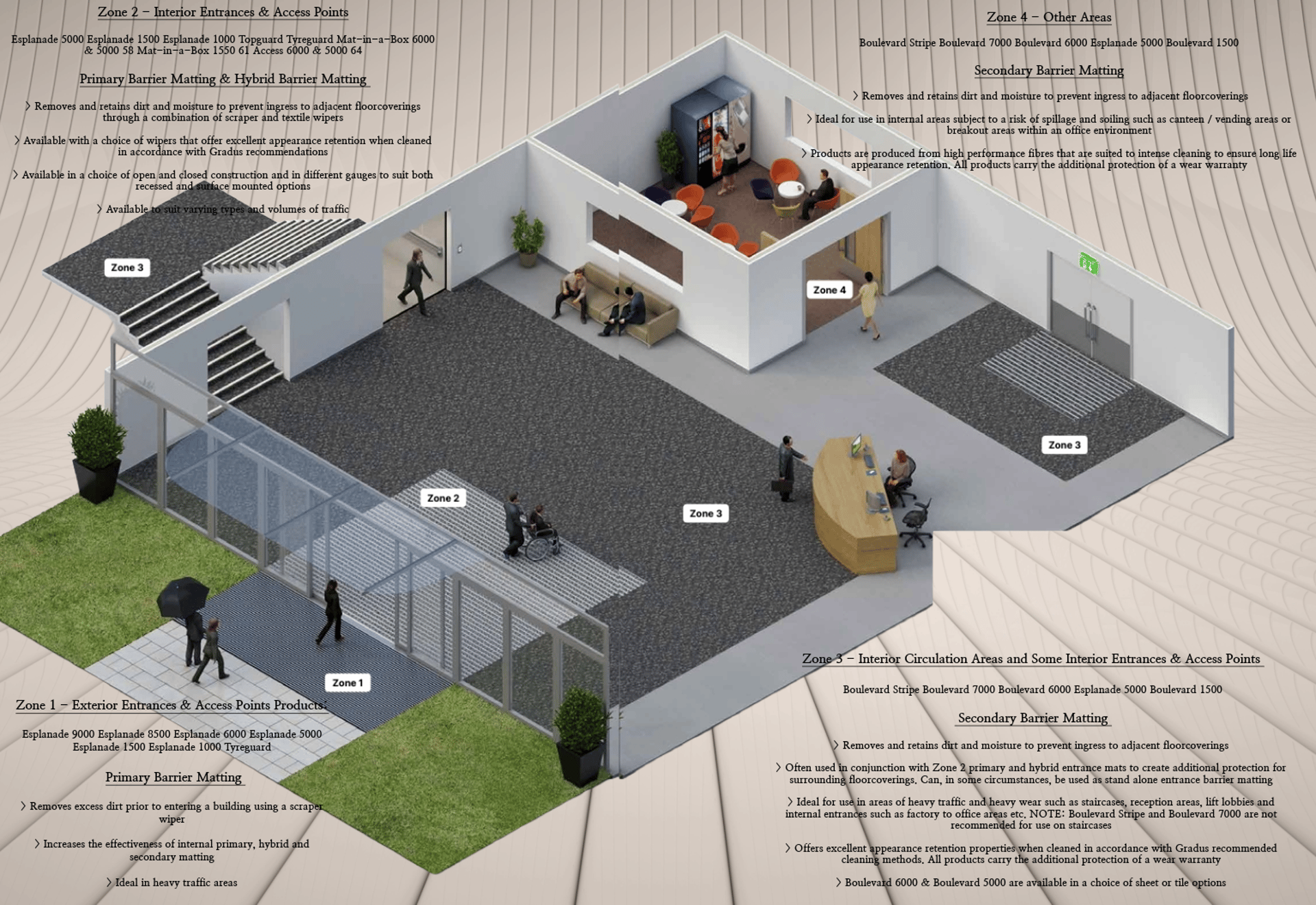

ENTRANCE & BARRIER MATTING SYSTEMS

ZONE 1 & 2

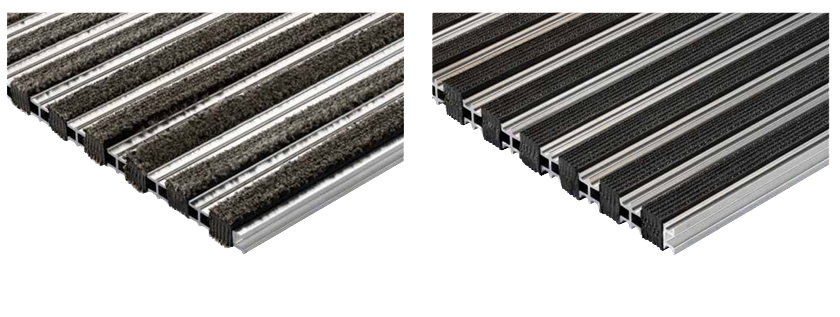

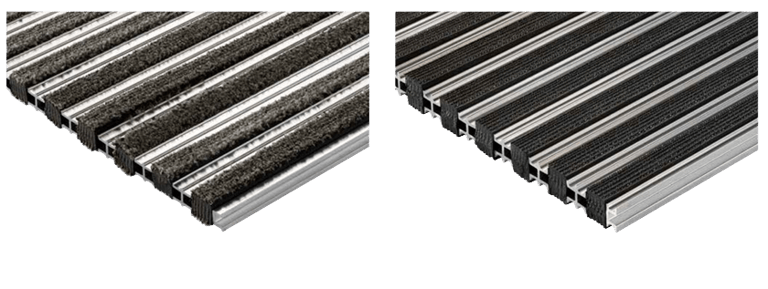

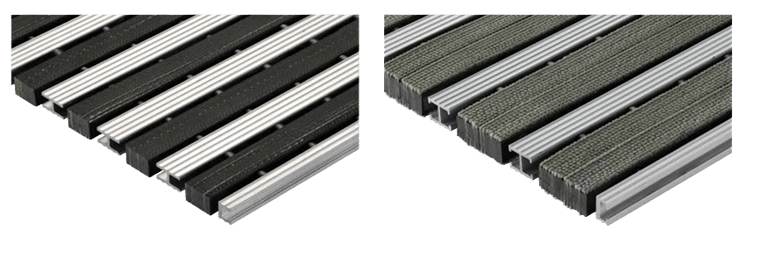

Esplanade 9000 Primary Barrier Matting: Closed Construction

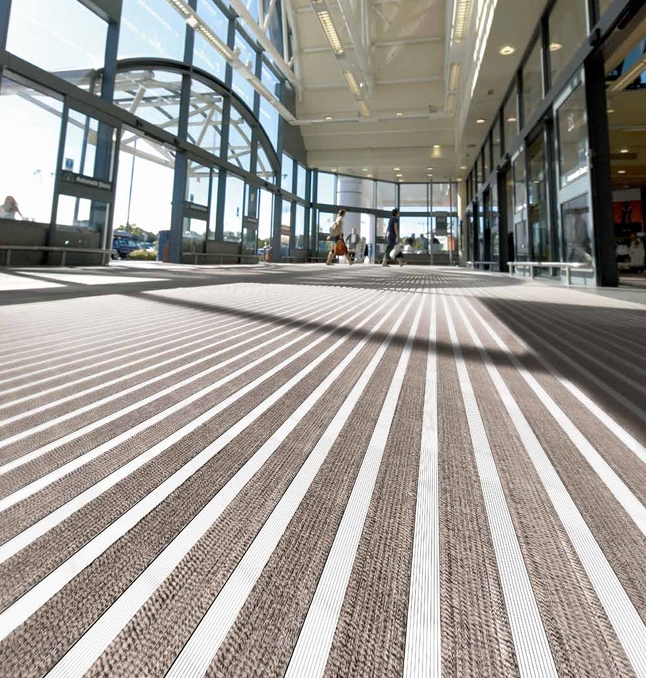

Zones 1 & 2 > Exterior & Interior Entrances & Access Points Typical application > Airports, railway stations, supermarkets with heavy wheeled traffic

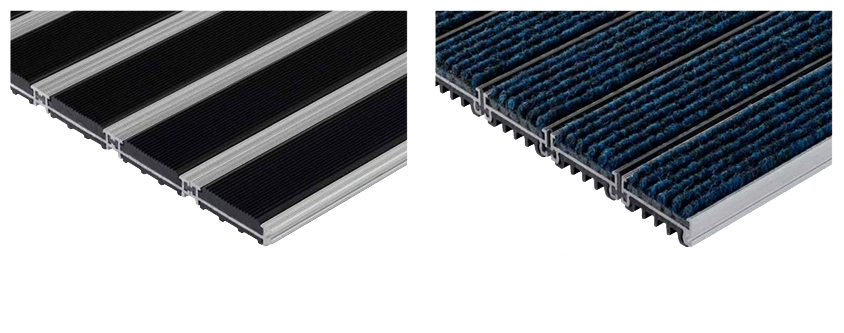

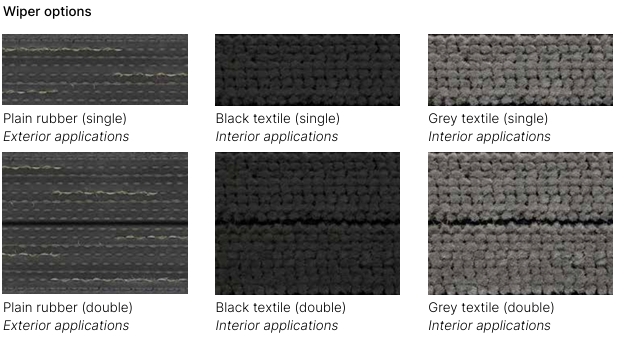

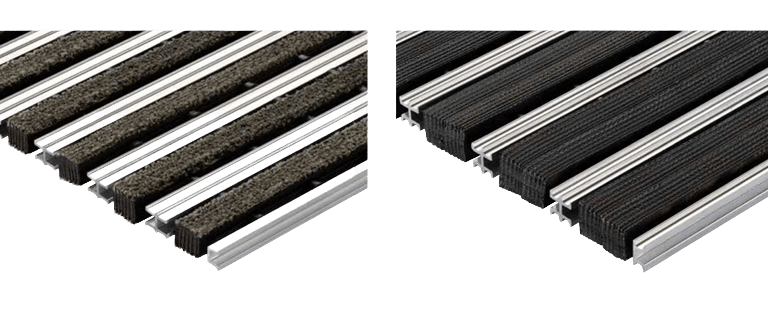

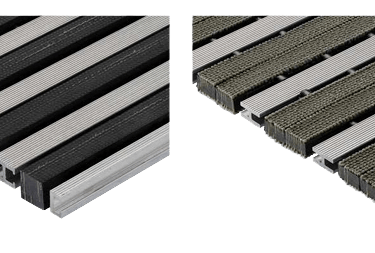

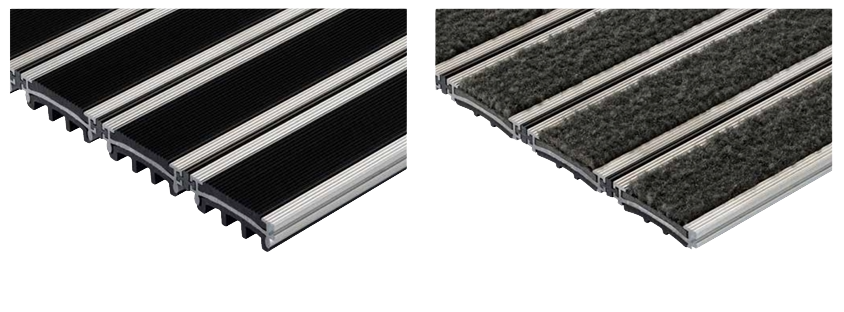

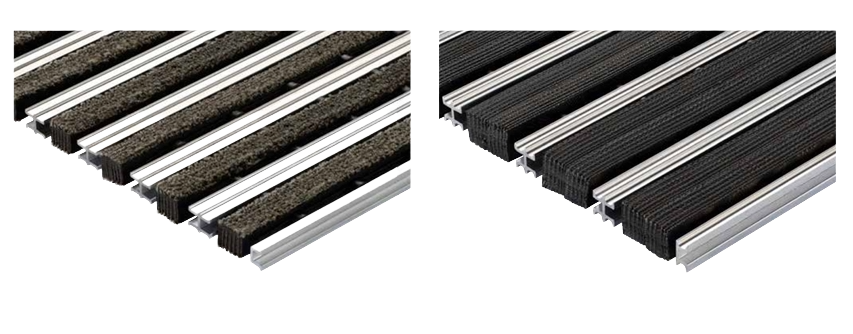

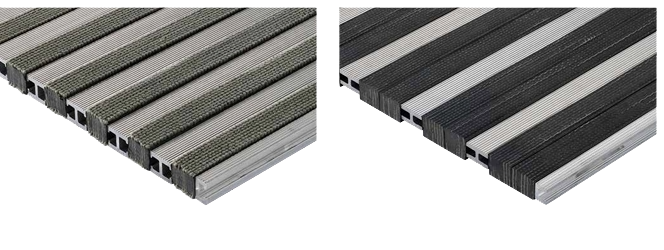

Esplanade 9000 is made with aluminium scraper linking strips and rubber wipers connected by steel wires. & The wipers come in plain rubber for exterior use or woven with grey polyester fibres for interior use. When installed as a true rectangle or square, it can be reversed to extend its life.

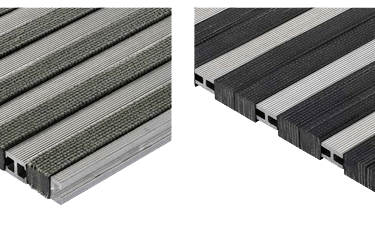

Open construction - incorporates spaces allowing dirt and moisture to fall through into the matwell below which can be lifted intermittently to remove the debris as well as for deep cleaning the mat itself

Closed construction - dirt and moisture remain on the surface of the mat and can be removed by regular cleaning in addition to periodic deep cleaning of the mat itself.

Esplanade 9000 : Open Construction

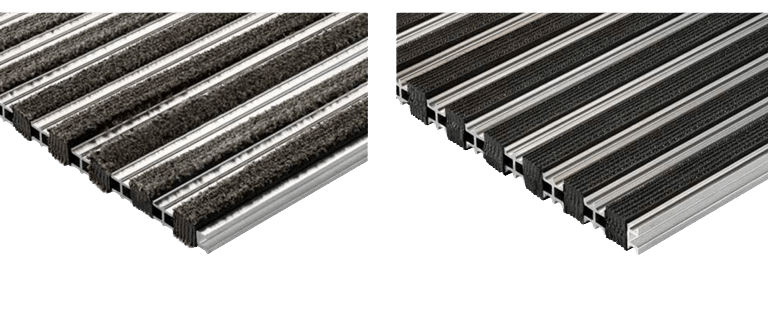

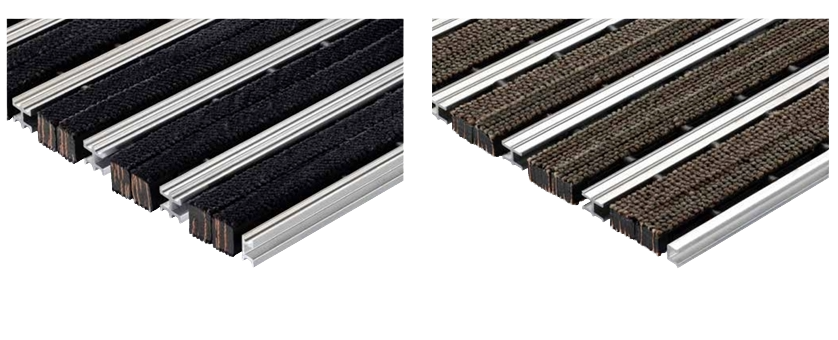

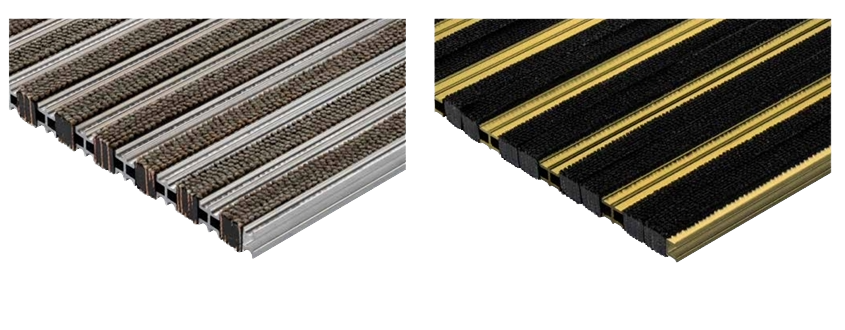

Esplanade 8500 Primary Barrier Matting: Closed Construction

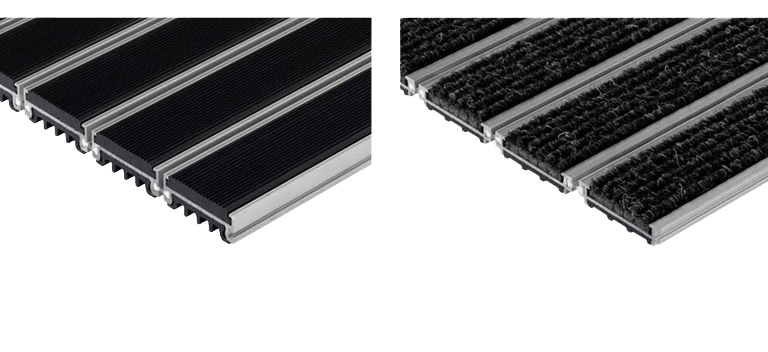

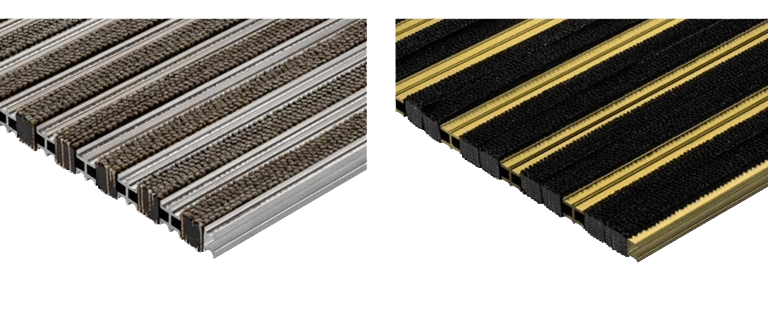

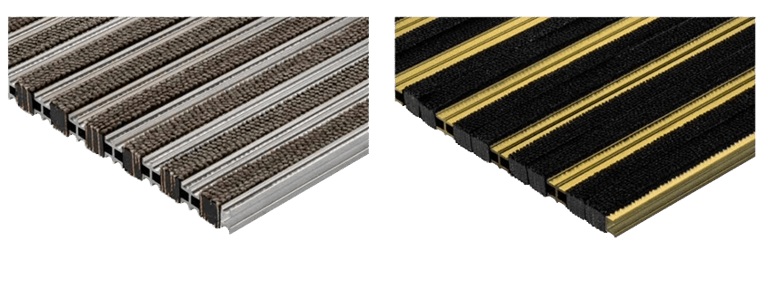

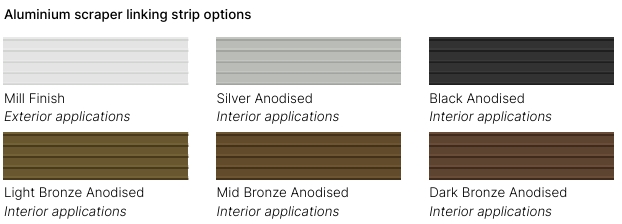

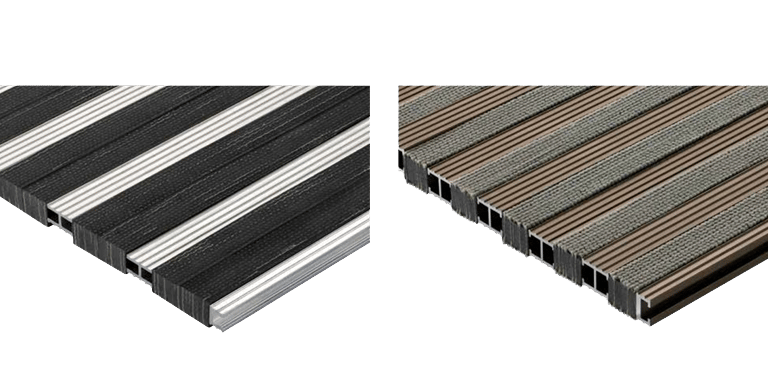

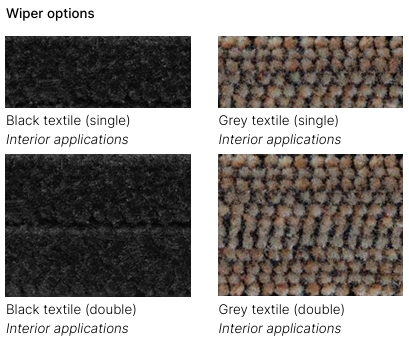

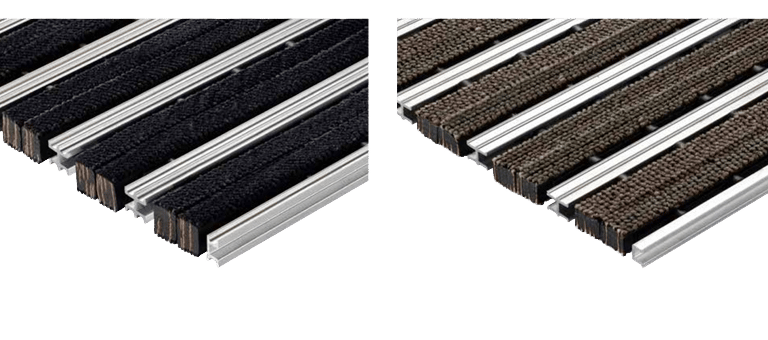

Esplanade 8500 is made with aluminium scraper linking strips and rubber wipers connected by steel wires. & The wipers come in plain rubber for exterior use or woven with grey or black polyester fibres for interior use. Aluminium scraper linking strips are available in various finishes to reduce glare: mill finish for exterior use, silver anodised for interior use, and black or bronze anodised for interior use. When installed as a true rectangle or square, it can be reversed to extend its life.

Esplanade 8500 : Open Construction

> Airports, railway stations, supermarkets & sports stadiums

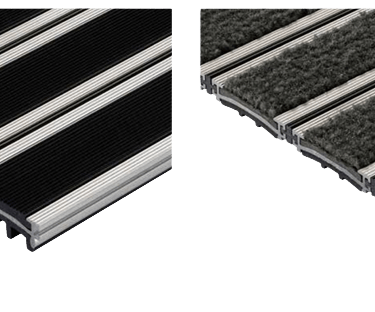

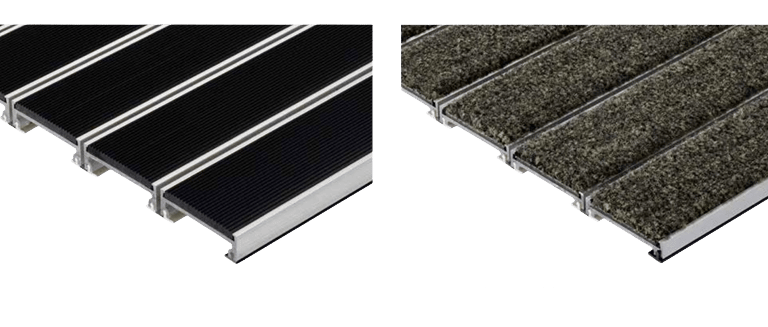

Esplanade 6000 Primary Barrier Matting : Closed Construction

> Large hospitals, offices, schools & department stores

> Airports, railway stations, supermarkets & sports stadiums

Esplanade 6000 : Open Construction

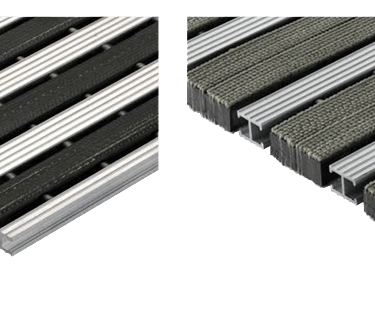

Esplanade 5000 Primary Barrier Matting : Closed Construction

> Large hospitals, offices, schools & department stores

Esplanade 5000 : Open Construction

Esplanade 1500 Primary Barrier Matting : Closed & Scraper Construction

Esplanade 1500 : Open Construction

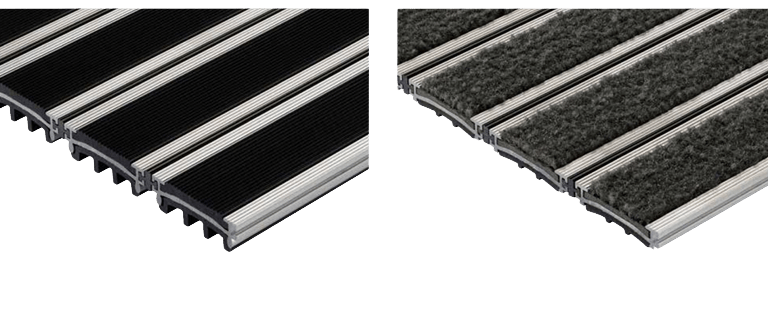

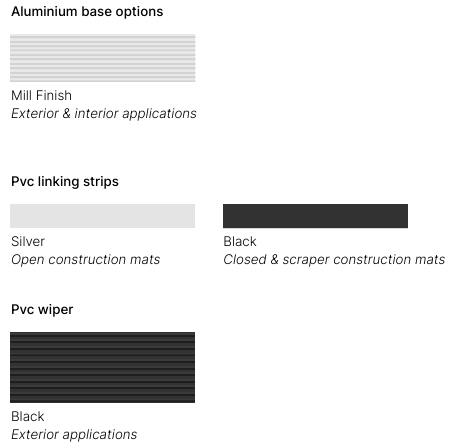

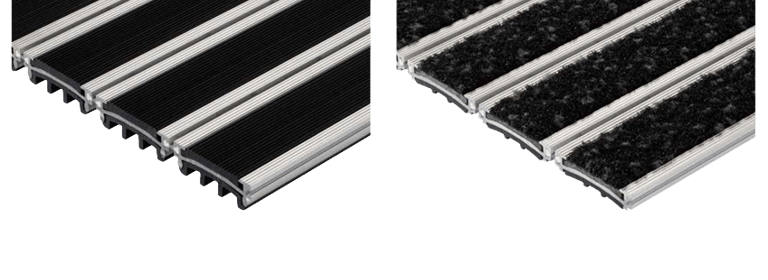

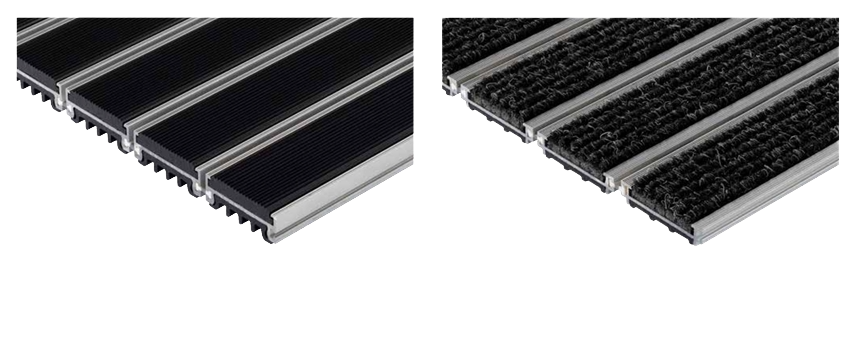

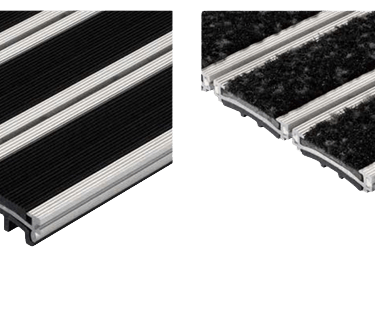

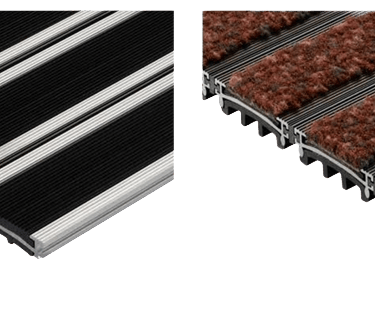

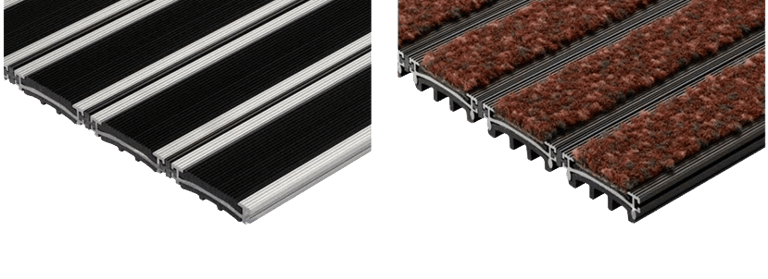

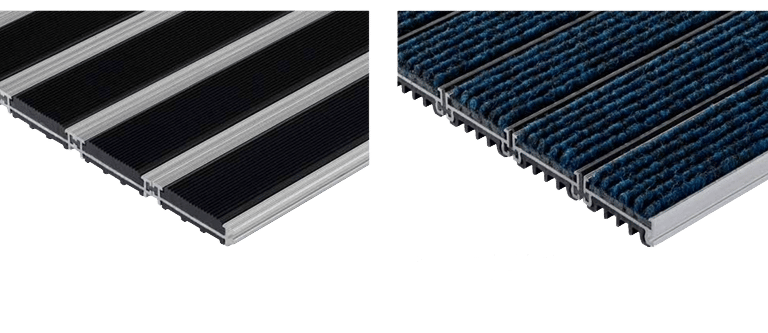

Esplanade 6000 is made with an aluminium base and wipers connected by pvc linking strips. The wipers come in pvc for exterior use or Boulevard 6000 textile wipers for interior use, made from 100% recycled ECONYL® solution dyed nylon yarn in eight colours. The aluminium base is supported by pvc bridging strips for extra strength and come in various finishes: mill finish for interior and exterior use and bronze anodised for interior use.

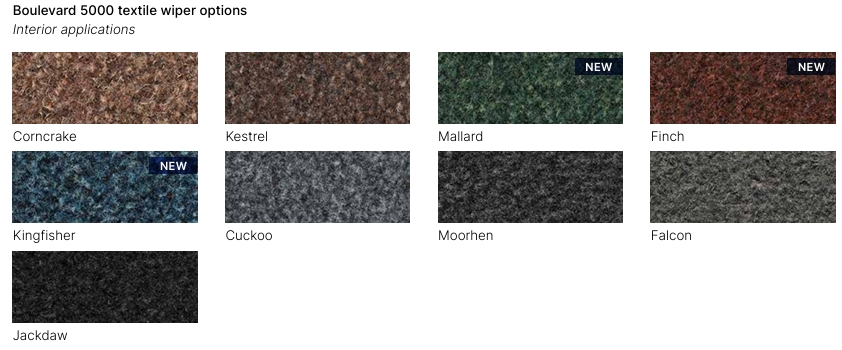

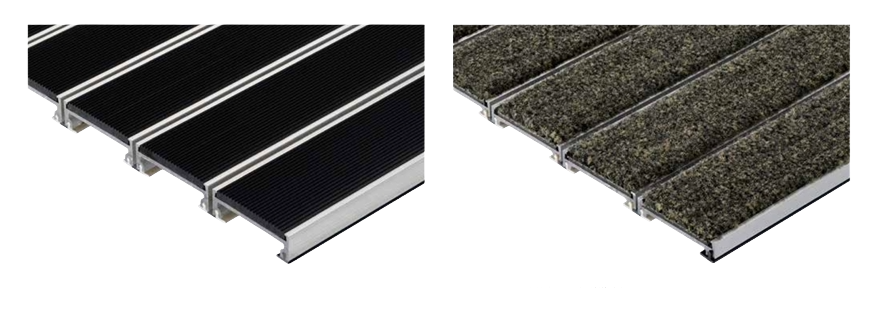

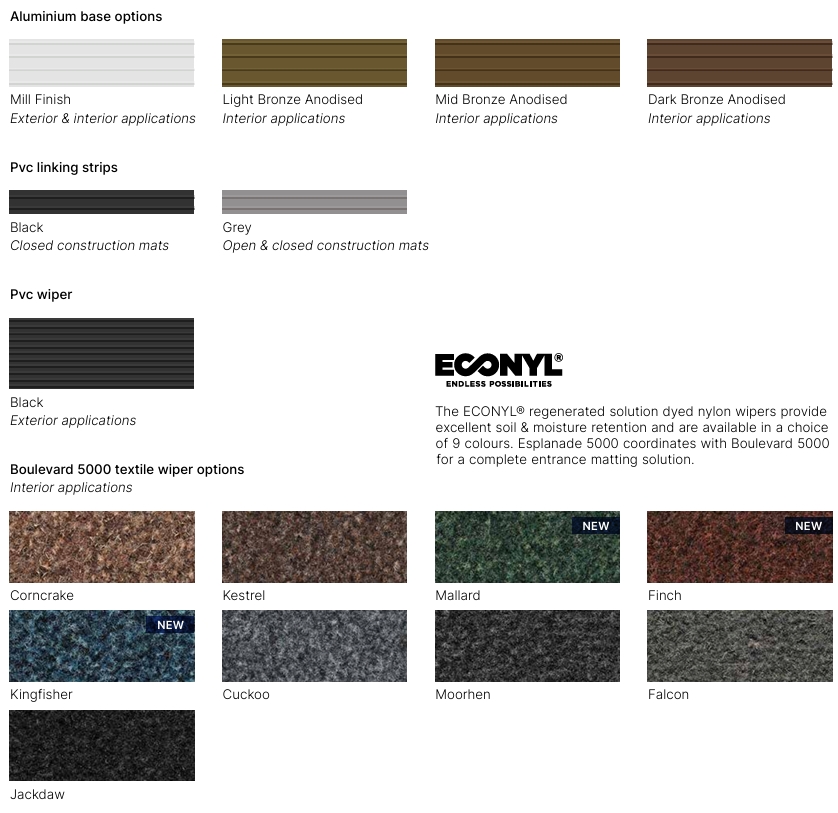

Esplanade 5000 is made with an aluminium base and wipers connected by pvc linking strips. The wipers come in pvc for exterior use or Boulevard 5000 textile wipers for interior use, made from 100% recycled ECONYL® solution dyed nylon yarn in nine colours. The aluminium base is supported by pvc bridging strips for extra strength and come in various finishes: mill finish for interior and exterior use and bronze anodised for interior use.

Esplanade 5000 is made with an aluminium base and wipers connected by pvc linking strips. The wipers come in pvc for exterior use or Boulevard 5000 textile wipers for interior use, made from 100% recycled ECONYL® solution dyed nylon yarn in nine colours. The aluminium base is supported by pvc bridging strips for extra strength and come in various finishes: mill finish for interior and exterior use and bronze anodised for interior use.

> Schools, offices & high street shops

Esplanade 1000 Primary Barrier Matting: Closed Construction

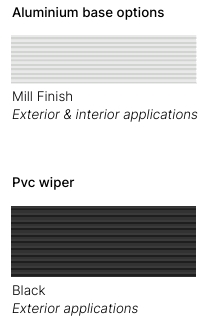

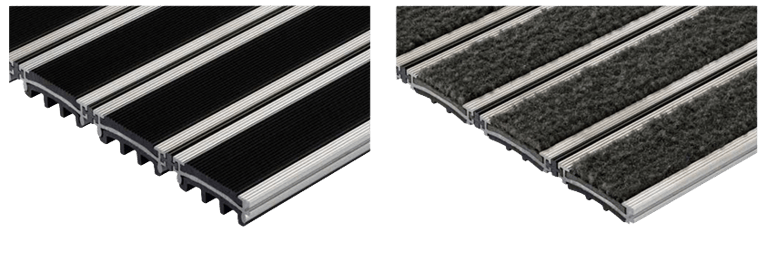

Esplanade 1000 is manufactured using an aluminium base with a choice of wipers which are connected using pvc linking strips. The wipers are available as pvc for exterior use or with 100% ECONYL® solution dyed nylon textile wipers for interior use. The textile wipers are available in a choice of four colours and for a complete matting solution

> Schools, offices & high street shops

Tyreguard Primary Barrier Matting : Closed Construction

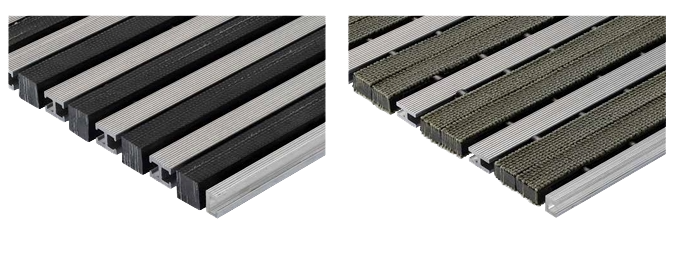

Tyreguard is manufactured using aluminium scraper linking strips and 100% recycled rubber wipers which are connected using steel wires. The wipers are available as plain rubber for exterior use or woven with grey nylon fibres for a textile wiper that is designed for interior use. When Tyreguard is installed as a true rectangle or square, it can be reversed to extend the product’s life

Tyreguard : Open Construction

Wheeled Traffic

Wheeled Traffic

Medium

Wheeled Traffic

Medium

Medium

ZONE 2

Topguard is manufactured using aluminium scraper linking strips and rubber interwoven wipers which are connected using steel wires. The rubber wipers are interwoven with grey or black polyester fibres for a textile wiper that is designed for interior use. When Topguard is installed as a true rectangle or square, it can be reverse to extend the product’s life.

Topguard® Primary Barrier Matting: Closed Construction

> Airports, railway stations, supermarkets & sports stadiums

Topguard® : Open Construction

A range of modular barrier matting products ideal for use in interior entrances and access points. Hybrid barrier matting is quick and easy to install and can be cut and trimmed on site. Hybrid barrier matting is often used in conjunction with secondary barrier matting to provide a total matting solution.

HYBRID BARRIER MATTING

Mat-in-a-Box® 6000 & 5000 : Closed Construction

> Schools, offices & high street shops

Mat-in-a-Box® 1550 Hybrid Barrier Matting

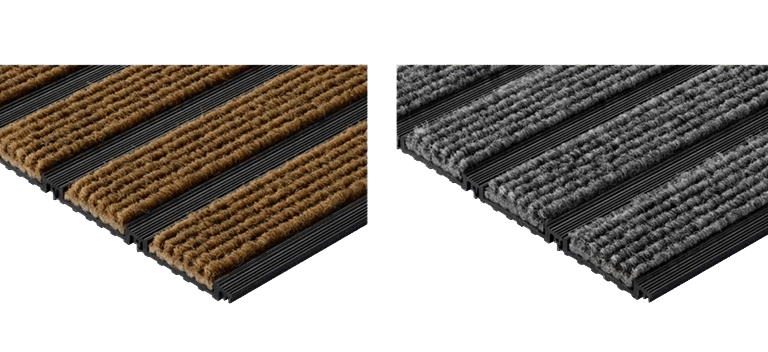

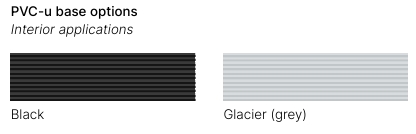

Mat-in-a-Box 1550 is manufactured using a through-coloured PVC-u base with a choice of 100% polypropylene textile wipers for interior use. The individual sections of the mat clip together on-site for a modular solution that is quick and easy to install.

> Schools, offices & high street shops

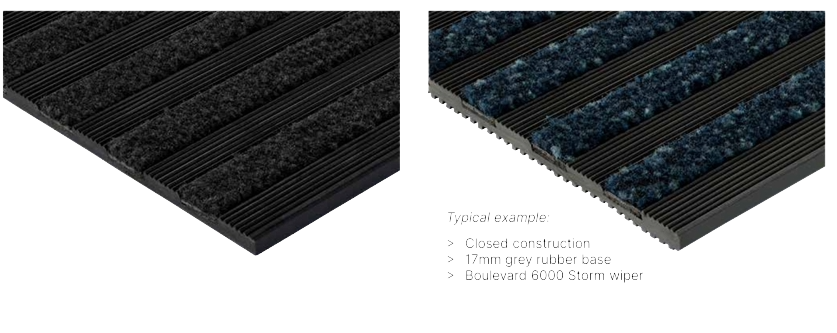

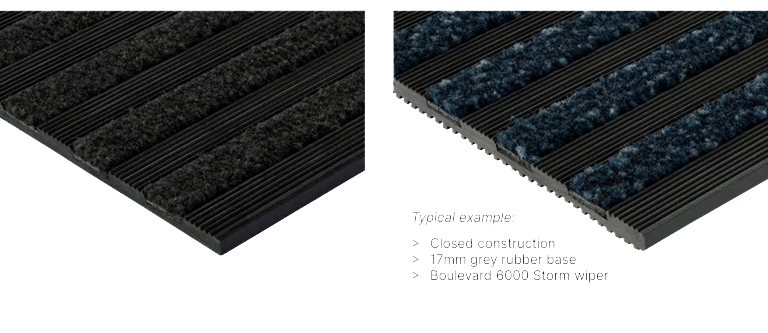

Access® 6000 & 5000 Hybrid Barrier Matting

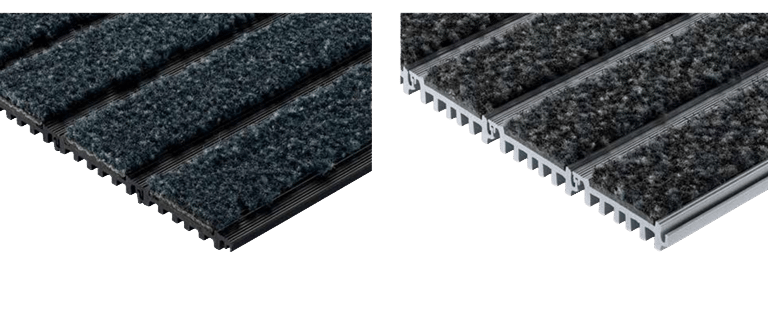

Access 6000 & 5000 is manufactured using a moulded rubber base with a choice of Boulevard 6000 or 5000 100% ECONYL® textile wipers for interior use. Access is ideal for use where electronic tagging systems operate and is easy to cut and install on-site.

> Smaller mat areas - schools, offices & high street shops

Wheeled Traffic

Medium

Wheeled Traffic

Medium

Wheeled Traffic

SECONDARY BARRIER MATTING

ZONE 3 & 4

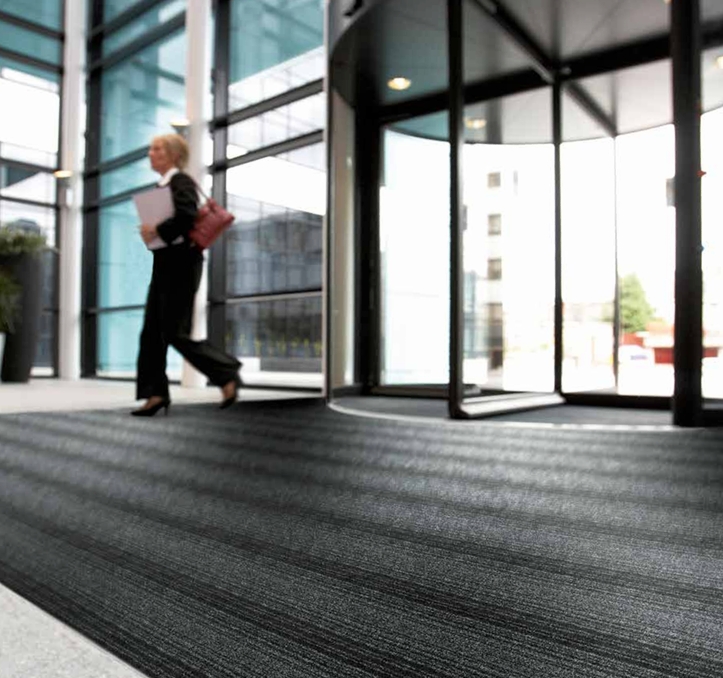

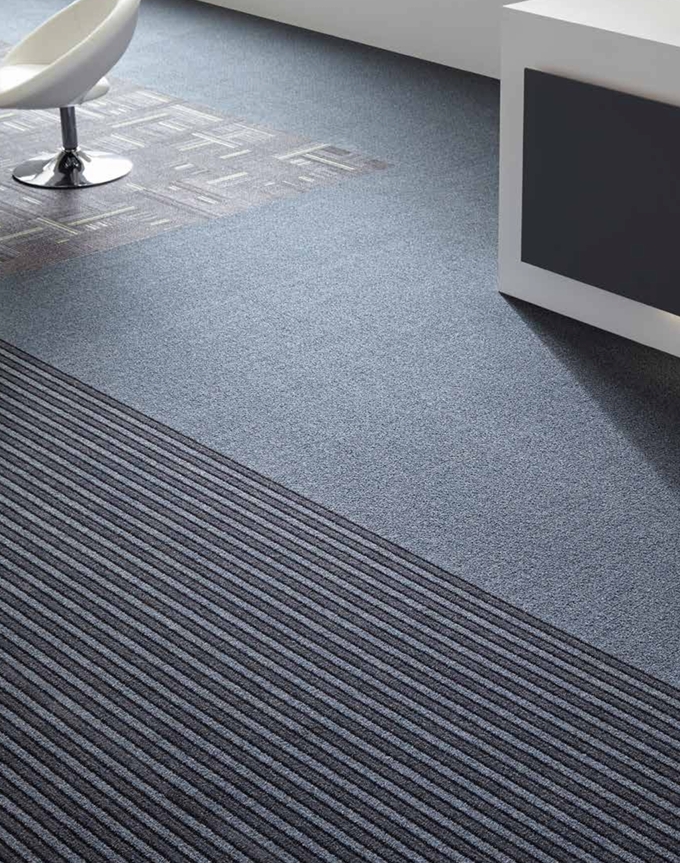

Boulevard secondary barrier matting is produced from high performance textiles and is ideal for use at internal entrances and access points as well as in high traffic circulation areas such as corridors and reception areas. Secondary barrier matting is often used in conjunction with primary barrier matting or hybrid barrier matting to provide a total matting solution but in some circumstances can be used as a stand-alone mat

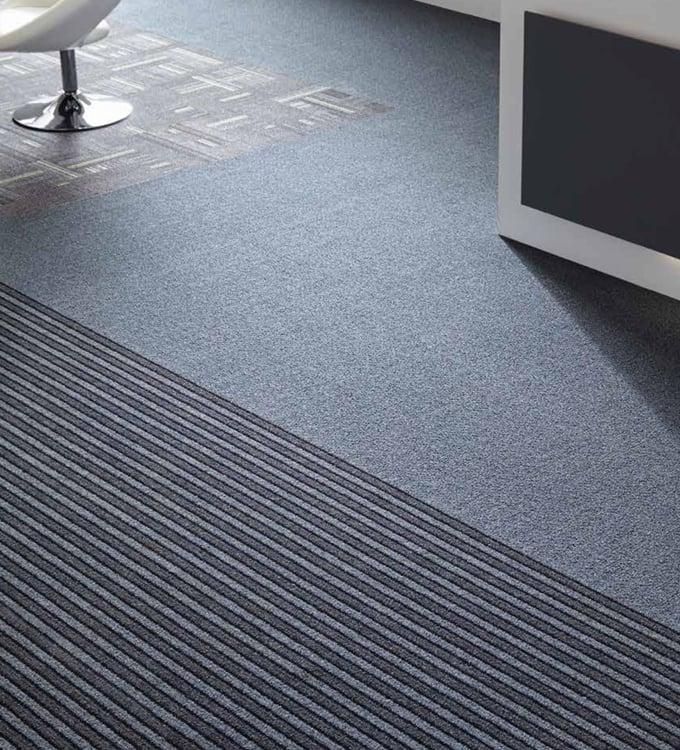

Boulevard Stripe is constructed from ECONYL® regenerated solution dyed nylon yarn and incorporates a heavy scraper fibre for optimum dirt removal and moisture retention. The range is available in a choice of two colours in sheet format. Boulevard Stripe can be used in conjunction with a primary entrance mat and in some situations can be used as stand-alone matting or in conjunction with a secondary barrier mat in entrances and access points

Boulevard™ Stripe

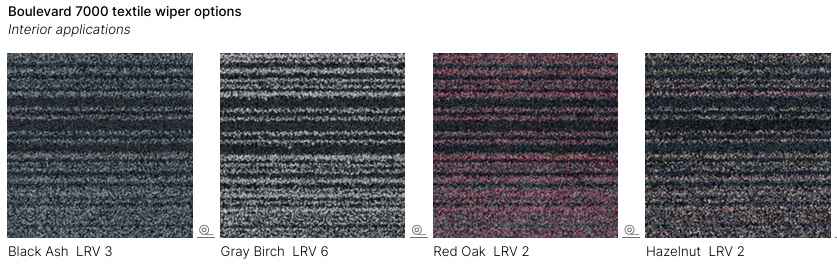

Boulevard™ 7000

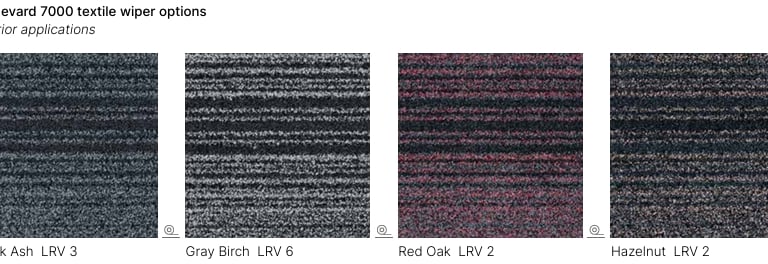

Boulevard 7000 is constructed from 100% solution dyed nylon yarn and incorporates a heavy scraper fibre for optimum dirt removal and moisture retention. The range is available in a choice of four colours in sheet format. Boulevard 7000 can be used in conjunction with a primary entrance mat and in some situations can be used as stand-alone matting in entrances and access points

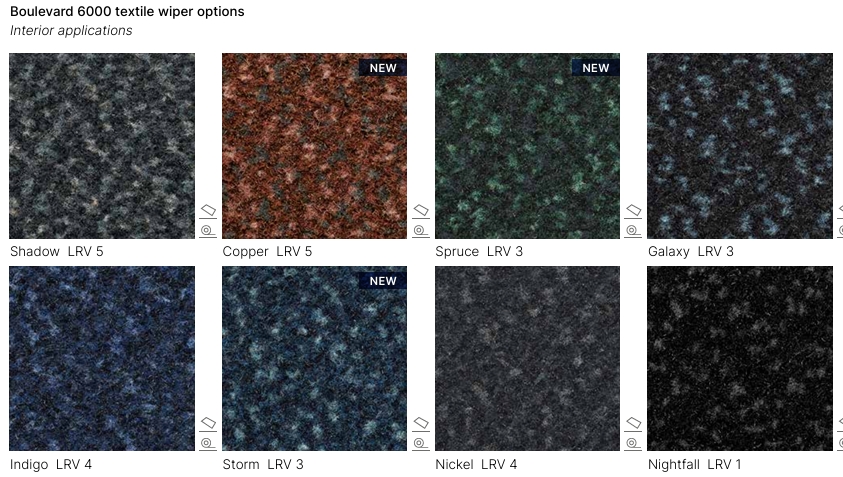

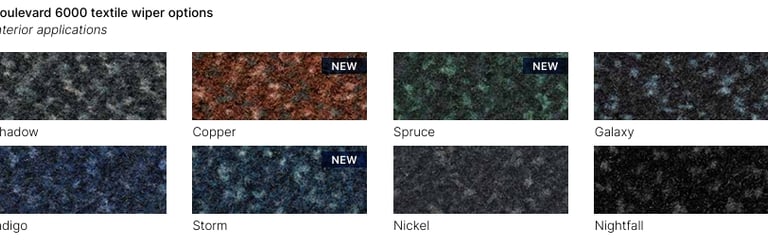

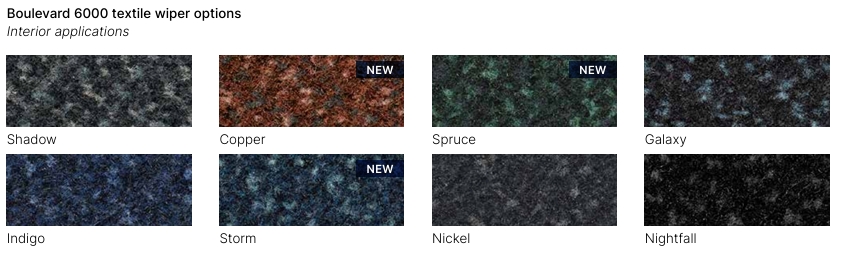

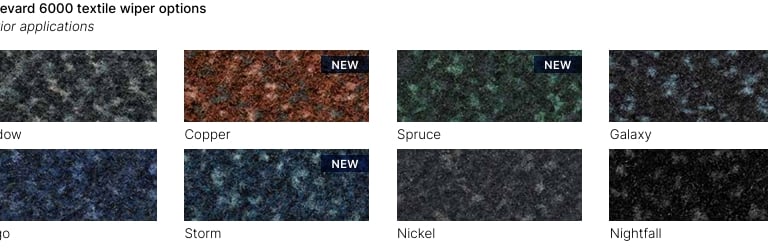

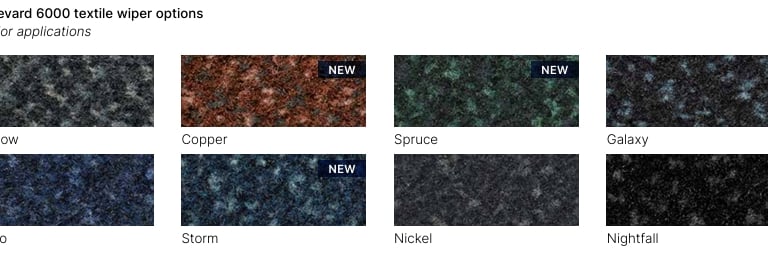

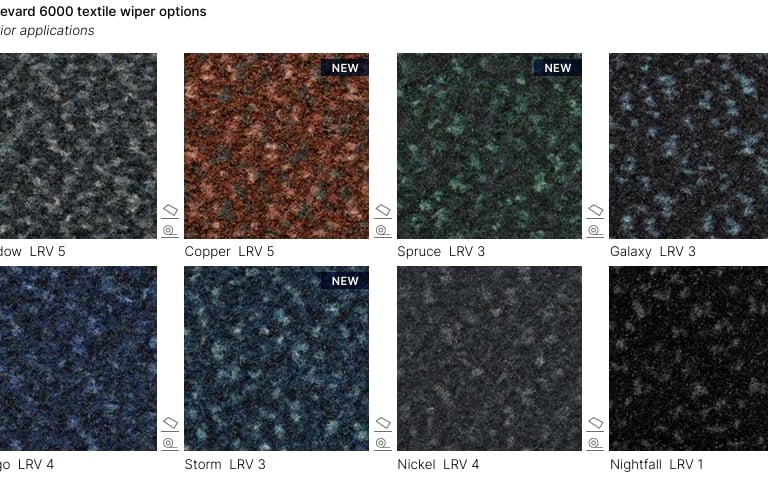

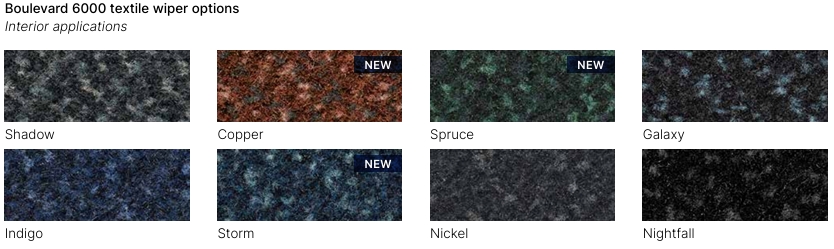

Boulevard 6000 is constructed from ECONYL® regenerated solution dyed nylon yarn and incorporates a heavy scraper fibre for optimum dirt removal and moisture retention. The range is available in a choice of eight colours in either sheet or tile format. Boulevard 6000 can be used in conjunction with a primary entrance mat and in some situations can be used as stand-alone matting in entrances and access points. The range is designed to complement Esplanade 6000, Mat-in-a-Box 6000 and Access 6000 primary barrier matting.

> Used in conjunction with a primary mat or as a stand-alone mat

Boulevard™ 6000

> Used in conjunction with a primary mat or as a stand- alone mat. Also in lift lobbies, corridors and service areas

8mm >TILE 500mm x 500mm

7mm >SHEET ROLL 25m x 2m

Boulevard™ 5000

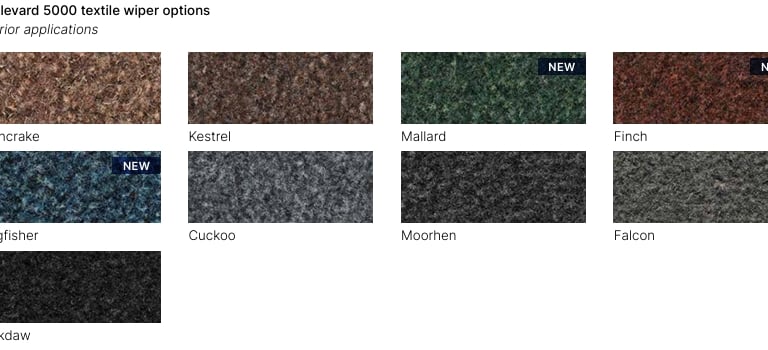

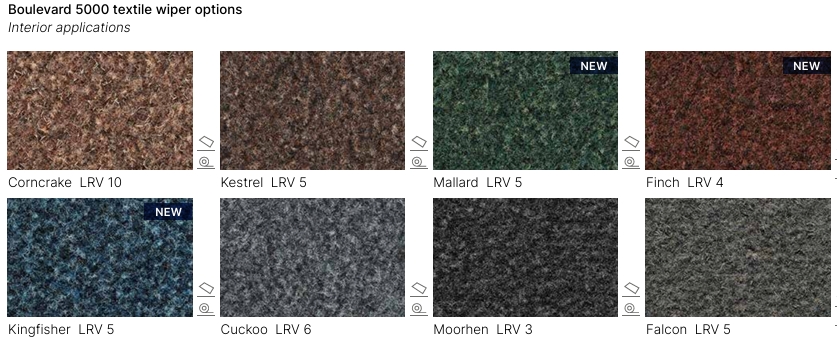

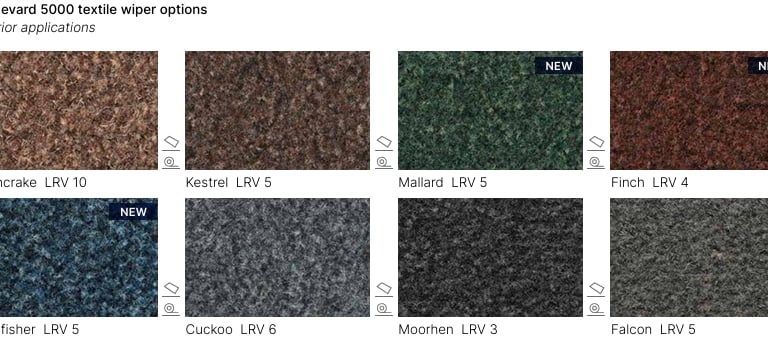

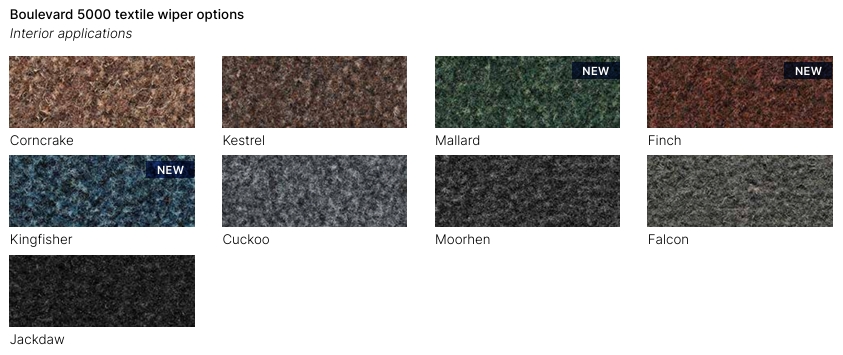

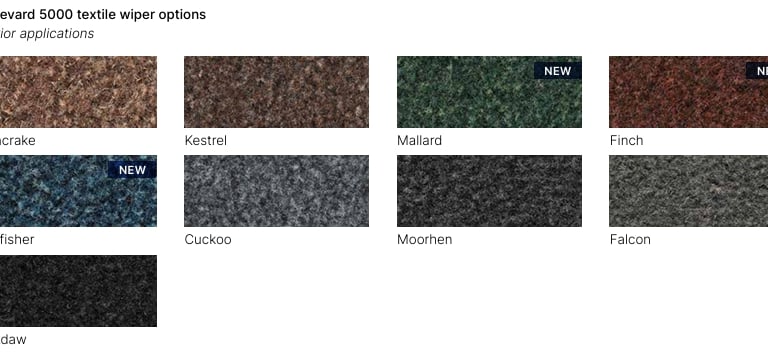

Boulevard 5000 is constructed from ECONYL® regenerated solution dyed nylon yarn and incorporates a light scraper fibre for optimum dirt removal and moisture retention. The range is available in a choice of nine colours in either sheet or tile format. Boulevard 5000 can be used in conjunction with a primary entrance mat and in some situations can be used as stand-alone matting in entrances and access points. The range is designed to complement Boulevard Stripe secondary barrier matting, Mat-in-a-Box 5000 and Access 5000 hybrid barrier matting and Esplanade 5000 primary barrier matting

> Used in conjunction with a primary mat or as a stand- alone mat. Also in lift lobbies, corridors and service areas

7mm >SHEET ROLL 25m x 2m

8mm >TILE 500mm x 500mm

7mm >SHEET ROLL 25m x 2m

6.8mm >SHEET ROLL 25m x 2m

Boulevard™ 1500

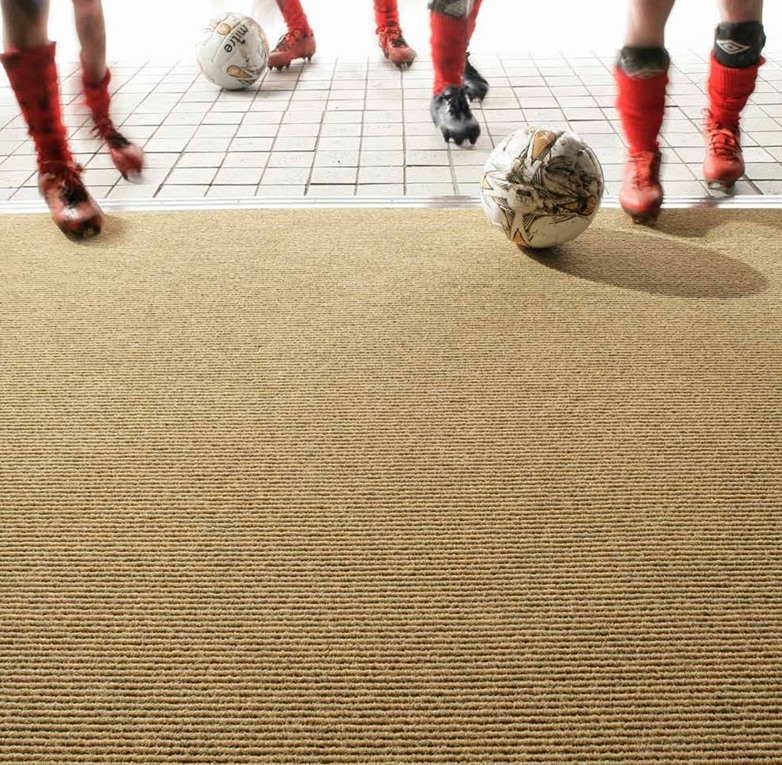

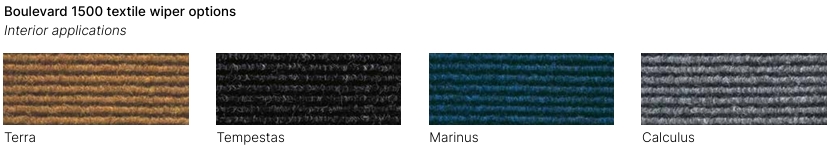

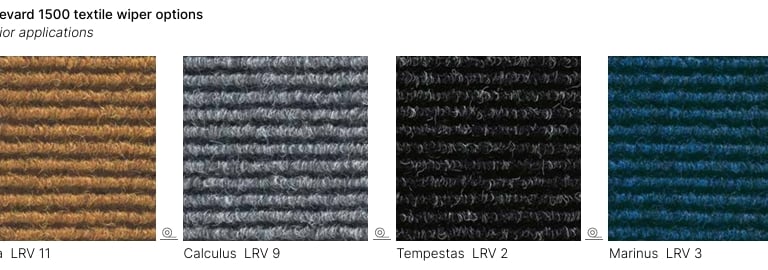

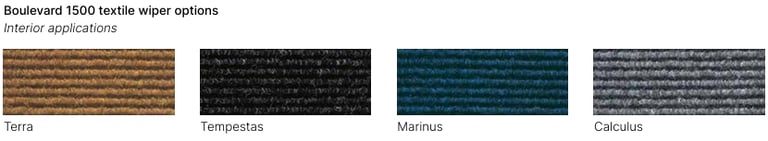

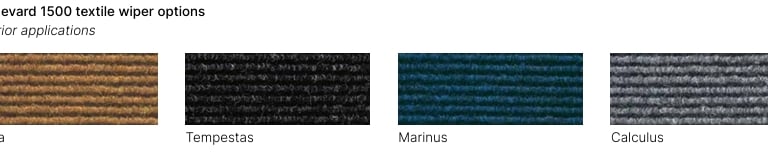

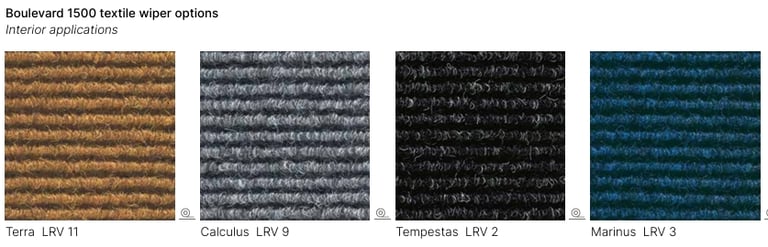

Boulevard 1500 is constructed from 100% polypropylene yarn and is available in a choice of four colours in sheet format. Boulevard 1500 can be used in conjunction with a primary entrance mat and in some situations can be used as stand-alone matting in entrances and access points. The range is designed to complement Mat-in-a-Box 1550 hybrid barrier matting and Esplanade 1500 primary barrier matting

10mm >SHEET ROLL 15m x 2m

100% POLYPROPYLENE NEEDLEPUNCH
